THE RIGHT MACHINE FOR EVERY JOB

Nine models, 21 to 62 meters.

Find Your Machine

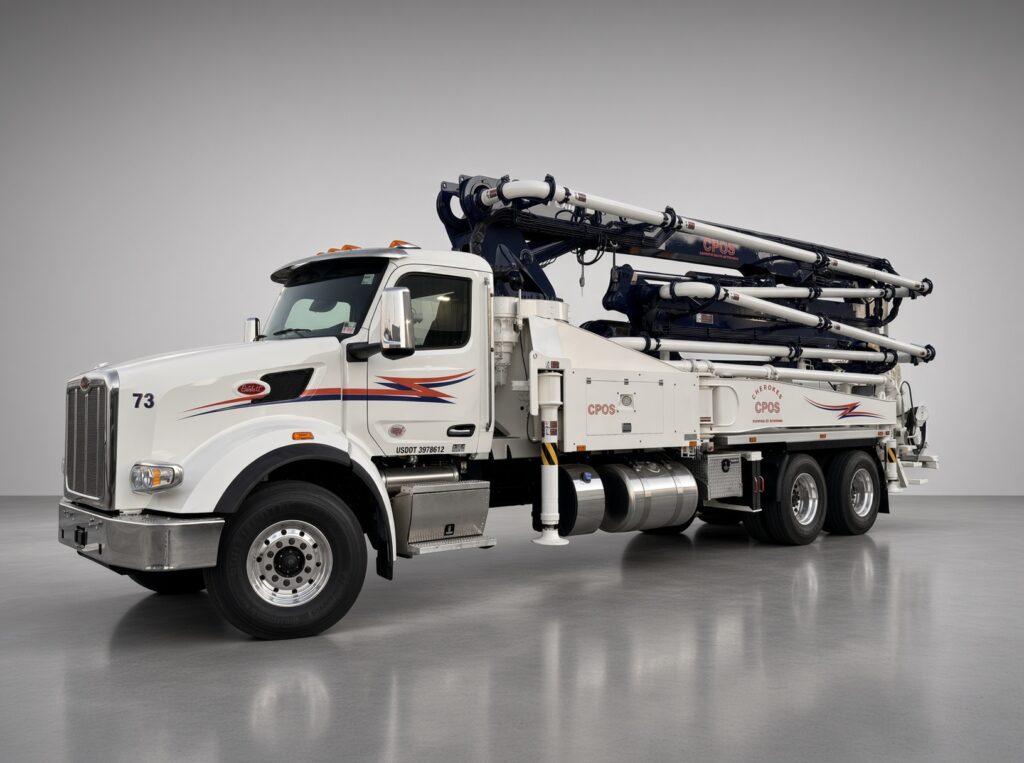

37ZR5
Boom Pump

TECHNICAL OVERVIEW

  • Boom:  5 Section ZR
  • Reach:  119.1 ft (Vert.), 106.7 ft (Horiz.)
  • Output: 209 yph @ 30 spm
View Product details

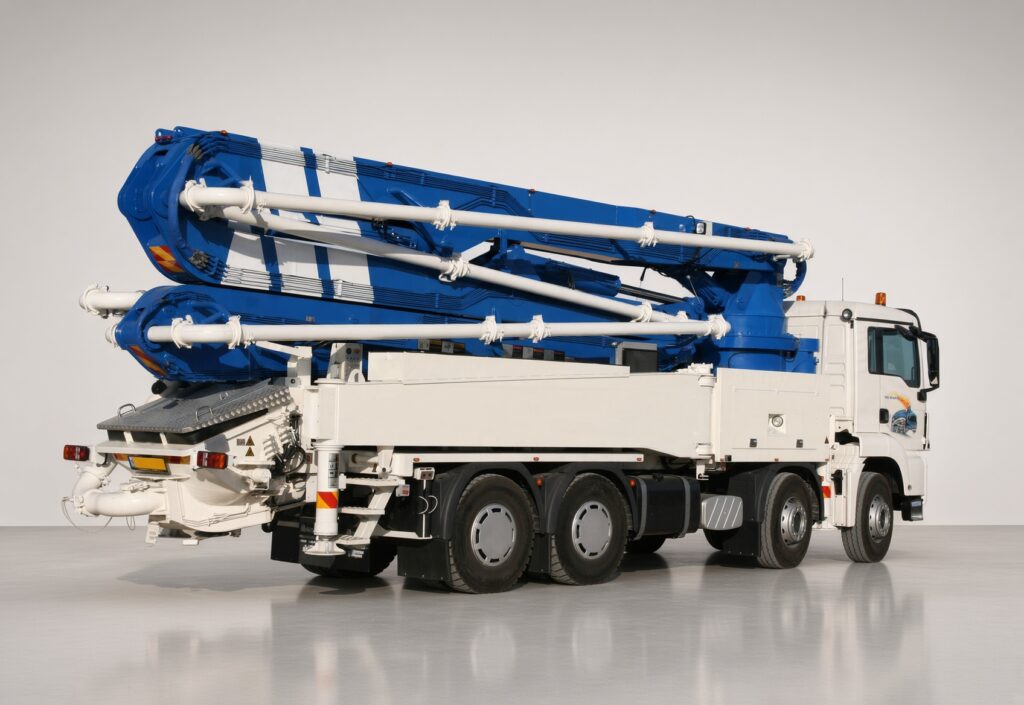

43RZ5
Boom Pump

TECHNICAL OVERVIEW

  • Boom:  5 Section RZ
  • Reach:  138.3 ft (Vert.), 123.9 ft (Horiz.)
  • Output:  209 yph @ 30 spm
View Product details

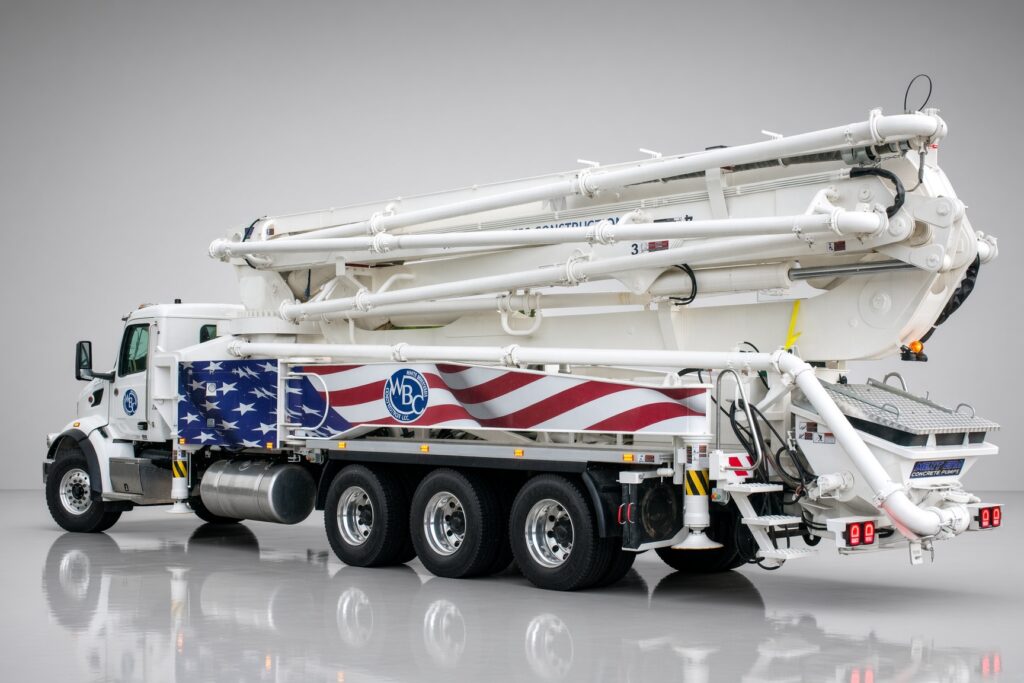

47RZ5
Boom Pump

TECHNICAL OVERVIEW

  • Boom: 5 Section RZ
  • Reach: 152.2 ft (Vert.), 138.2 ft (Horiz.)
  • Output: 209 yph @ 30 spm
View Product details

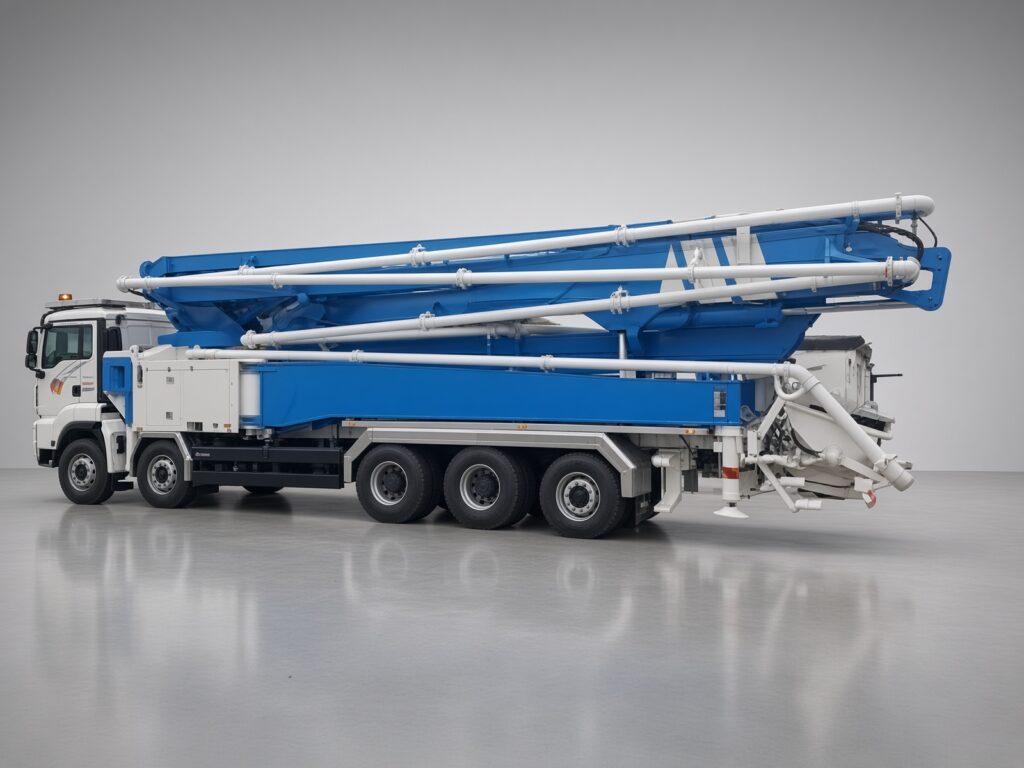

56RZ5
Boom Pump

TECHNICAL OVERVIEW

  • Boom:  5 Section RZ
  • Reach:  180.4 ft (Vert.), 164.0 ft (Horiz.)
  • Output:  237 yph @ 35 spm.
View Product details

NEED A DIFFERENT REACH?

Our full lineup runs from 21 to 62 meters and all are available on request.  Contact us directly about the 21ZX4, 33ZR5, 40RZ5, 52RZ5 or 62RZ6 and we’ll get specs, pricing, and a delivery window to you fast.

CALL US ABOUT SPECS AND PRICING

STANDARD IS HIGHER HERE

From the steel in every boom to the warranty behind it, every Next Era pump comes standard with innovative features that minimize downtime and maximize the return on every dollar you’ve invested.

SEE WHAT MAKES US DIFFERENT
Coming Soon Truck Image

Structural Integrity

A concrete pump takes a beating - from the high cycle vibrations of driving to and from jobsites to variable boom configuration pumping. Every pour stresses the structures, and over thousands of cycles that’s what wears a machine out. Strength and endurance aren’t just about what steel you use - they’re about how it’s designed to carry loads.

Drawing on more than 20 years of boom pump design & manufacturing experience, every Next Era pump is built from HSLA steels and held to precise fabrication tolerances - engineered to resist bending and fatigue, not just to hold weight. The result is a stable, durable machine that withstands the demands of concrete pumping - Reliable by Design

Benefits

  • Long life performance
  • HSLA Steel Construction
  • Precise Fabrication Tolerances
  • Balanced for Rigidity and Fatigue Resistance

Manual Stroke Limiter

Many OEMs provide the ability to stroke the pump at some unknown speed or output but with very limited control. Next Era provides a true manual stroke limiter giving the operator precise control from 0 to Full strokes per minute depending on the jobsite demands.

Benefits

  • Maximize performance
  • Maximize safety
  • Maximize ease of operation

Huck-Bolted Frame Mounting

We mount every unit to the truck frame with huck bolts instead of conventional nuts and bolts. Standard bolted connections can loosen over time under the constant vibration and load of pumping. Huck bolts install to a permanent, locked clamp that stays tight for the life of the machine - no torque checks, no working loose, no re-tightening down the road.

Benefits

  • Won’t Vibrate Loose Like Standard Bolts
  • Permanent, Consistent Clamp Force
  • Holds Tight Under Constant Load
  • No Ongoing Re-Torquing Required

Industry Leading Warranty

Every Next Era unit comes with 3 years of comprehensive coverage on all Next Era-manufactured components - pumping systems, booms, and structural elements. Armor Plus extends that to 5 years total for operators who want additional peace of mind. It’s not a document built to avoid claims. It’s a commitment to stand behind every machine and fix problems when they happen, without the runaround.

Benefits

  • 3 Years Standard, 5 With Armor Plus
  • Full Coverage on Pumps, Booms & Structure
  • Straight Answers on Every Claim

NEXT ERA GREASE GUARDIAN

In most concrete pumps operating today, any clogged grease line in the auto-greaser distribution network will prevent greasing to all points in the system – and the operator has no idea nothing is getting greased. Next Era has developed a clogged grease line indication system that alerts the operator of the condition so action can be taken to keep the grease flowing.

Benefits

  • Maximize uptime.
  • Minimize unnecessary parts failure
  • Minimize costly replacements

BACKUP RADIO REMOTE

Most OEM’s provide a radio remote and a cabled backup. At Next Era our backup remote is a wireless radio, exactly the same as our primary remote. It comes protected in a foam lined hard case pre-programmed and ready to use.

Benefits

  • Easy to utilize backup remote
  • No performance loss
  • Exactly same as primary remote

HATOX RADIO REMOTE

Next Era concrete pumps are integrated with the German HATOX radio remote controller. This 900 MHz radio integrates some of the highest quality proportional controls available into a near indestructible aluminum housing. Another great feature is that it runs on inexpensive AA batteries.

Benefits

  • 900 MHz Spread Spectrum
  • No plastic housing / stripped screws
  • No expensive OEM batteries
  • Unparalleled support

12v ELECTRIC CONTROLS

We believe a concrete pump controller should be as simple as possible with no unnecessary complexity. Our electric control system is 12v and uses NO Printed Circuit Boards (PCB’s).

Benefits

  • Understandable Design
  • Easily Sourced Components
  • Simple Diagnostics
  • Easy Emergency Override

ALL Hydraulic SWITCHING

In our pumping circuit, at the end of the stroke, a small amount of hydraulic oil is quickly ported through signaling valves to switch positions of two directional control valve spools. This redirects the flows to the pumping cylinders and S-Tube switching cylinder, the valve shifts and pumping continues.

Benefits

  • No Proximity Switches
  • Rexroth switching valves
  • Maintenance Free
  • Fully Proportional Manual Override

OPEN LOOP HYDRAULICS

In our Open Loop pumping circuit, hydraulic oil flows from tank to main pump to pumping cylinders and back to tank, where it is allowed to settle and be cooled. Others use closed loop systems that reuse the working oil and only replace a small percentage of the oil every stroke.

Benefits

  • Low Cost Robust Design
  • Maximum Cooling & Oil Life
  • Reliable Rexroth A11 Main Pump
  • Fully Proportional Manual Override
